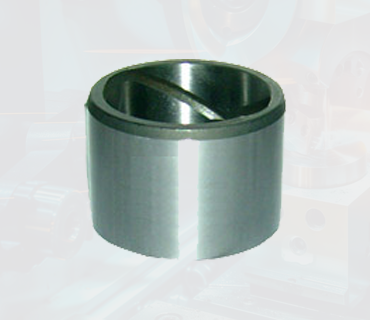

Oil Groove Induction Harden Bush :



Oil Groove Induction Harden Bush



Oil Groove Induction Harden Bush
RAW MATERIAL :
En 8D
OUTER DIAMETER :
55.00 + 0.102/ + 0.121
INNER DIAMETER :
45.085 + 0.025 mm
TOTAL LENGTH :
54.8 mm
GROOVING WIDTH :
5 mm
GROOVING DEPTH :
1.5 mm
SURFACE HARDNESS :
55 - 60 HRC
CASE DEEPTH :
1.8 - 2.00 45 HRC

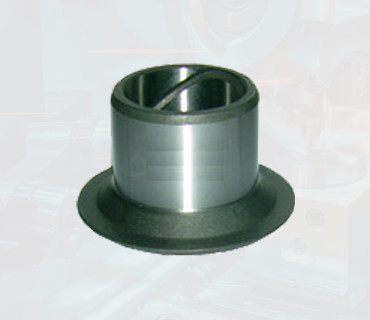

RAW MATERIAL :
En 8D
COUNTER DIAMETER :
82.00 mm
OUTER DIAMETER : 50.00 + 0.102/ + 0.121
INNER DIAMETER :
40. + 075 + 0.025 mm
TOTAL LENGTH :
47.5 mm
GROOVING WIDTH :
3 mm
GROOVING DEPTH :
1.2 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC

RAW MATERIAL :
En 8D
OUTER DIAMETER :
50.00 mm + 0.102/ + 0.121
INNER DIAMETER :
40. + 070 + 0.095 mm
TOTAL LENGTH :
5 mm
GROOVING WIDTH :
3 mm
GROOVING DEPTH :
1.5 mm
SURFACE HARDNESS :
52 - 60 HRC
HRC CASE DEEPTH :
1.8 - 2.00 mm
RAW MATERIAL :
En 8D
OUTER DIAMETER :
55.00 mm + 0.102/ + 0.121
INNER DIAMETER :
45 + 085 + 0.025 mm
TOTAL LENGTH :
54.8 mm
DRILL SIZE :
5 mm
CENTER DISTANCE :
29.5
GROOVING WIDTH :
5 mm
GROOVING DEPTH :
1.5 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC

RAW MATERIAL :
En 8D
OUTER DIAMETER :
60.00 mm + 0.102/ + 0.121
INNER DIAMETER :
50. + 090 + 0.023 mm
TOTAL LENGTH :
35.8 mm
GROOVING WIDTH :
5 mm
GROOVING DEPTH :
1.5 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC
RAW MATERIAL :
En 8D
COUNTER DIAMETER :
84.00 mm
OUTER DIAMETER :
55.00 + 0.102/ + 0.121
INNER DIAMETER :
45. + 090 + 0.023 mm
TOTAL LENGTH :
47.5 mm
GROOVING WIDTH :
3 mm
GROOVING DEPTH :
1.2 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC

RAW MATERIAL :
En 8D
OUTER DIAMETER :
55.00 mm + 0.102/ + 0.121
INNER DIAMETER :
45 + 105 + 0.121 mm
TOTAL LENGTH :
36 mm
GROOVING WIDTH :
3 mm
GROOVING DEPTH :
1. 2 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC
RAW MATERIAL :
En 8D
OUTER DIAMETER :
75.00 mm + 0.102/ + 0.121
INNER DIAMETER :
60 + 0.09 + 0.112 mm
TOTAL LENGTH :
44.8 mm
GROOVING WIDTH :
5 mm
GROOVING DEPTH :
1.5 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC
RAW MATERIAL :
En 8D
OUTER DIAMETER :
50.00 mm + 0.102/ + 0.121
INNER DIAMETER :
40 + 0.09 + 0.023 mm
TOTAL LENGTH :
39.8 mm
GROOVING WIDTH :
5 mm
GROOVING DEPTH :
1.5 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC
RAW MATERIAL :
En 8D
COUNTER DIAMETER :
72.00 mm
OUTER DIAMETER :
45.00 + 0.102/ + 0.121
INNER DIAMETER :
35. + 090 + 0.023 mm
TOTAL LENGTH :
39 mm
GROOVING WIDTH :
3 mm
GROOVING DEPTH :
1.2 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC

RAW MATERIAL :
En 8D
OUTER DIAMETER :
45.00 mm + 0.102/ + 0.121
INNER DIAMETER :
35 + 0.09 + 0.023 mm
TOTAL LENGTH :
29.8 mm
GROOVING WIDTH :
3 mm
GROOVING DEPTH :
1.2 mm
SURFACE HARDNESS :
52 - 60 HRC
CASE DEEPTH :
1 - 1.8 45 HRC

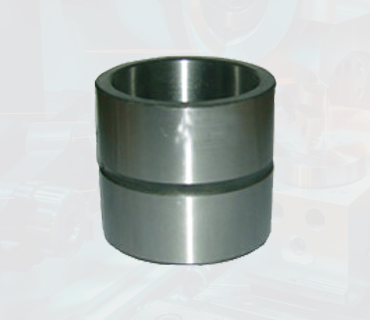

Hardened Bushes


Hardened Bushes
RAW MATERIAL :
16 MnCr 5
OUTER DIAMETER :
73.96 +/- 0.02 mm
INNER DIAMETER :
60.18 +/- 0.02 mm
TOTAL LENGTH :
84.3 +/- 0.2 mm
GROOVING WIDTH :
R 6
DRILL SIZE :
5 mm
SURFACE HARDNESS :
55 - 62 HRC
CASE DEEPTH :
0.6 to 0.7
SURFACE FINISH :
Ra 0.8 MICRO MM
RAW MATERIAL :
16 MnCr 5
OUTER DIAMETER :
54.96 +/- 0.02
INNER DIAMETER :
45.25 +/- 0.02 mm
TOTAL LENGTH :
104.5 +/- 0.2 mm
GROOVING WIDTH :
R 6
DRILL SIZE :
5 mm
SURFACE HARDNESS :
55 - 60 HRC
CASE DEEPTH :
0.8 to 1 mm
SURFACE FINISH :
Ra 0.8 MICRO MM
RAW MATERIAL :
16 MnCr 5
OUTER DIAMETER :
54.96 +/- 0.02
INNER DIAMETER :
51.17+/- 0.02 mm
TOTAL LENGTH :
69.8 +/- 0.2 mm
GROOVING WIDTH :
R 6
DRILL SIZE :
5 mm
SURFACE HARDNESS :
55 - 60 HRC
CASE DEEPTH :
0.5 to 0.6 mm
SURFACE FINISH :
Ra 0.8 MICRO MM
RAW MATERIAL :
16 MnCr 5
OUTER DIAMETER :
85.98 +/- 0.02
INNER DIAMETER :
70.21+/- 0.02 mm
TOTAL LENGTH :
50 +/- 0.2 mm
SURFACE HARDNESS :
55 - 62 HRC
CASE DEEPTH :
0.8 to 1 mm
SURFACE FINISH :
Ra 0.8 MICRO MM
RAW MATERIAL :
M.S( MIN HIGH)
OUTER DIAMETER :
80.15 +/- 0.02
INNER DIAMETER :
70.37 +/- 0.02 mm
TOTAL LENGTH :
31.6 +/- 0.2 mm
SURFACE HARDNESS :
55 - 62 HRC
CASE DEEPTH :
0.5 to 0.6 mm
SURFACE FINISH :
Ra 0.8 MICRO MM

RAW MATERIAL :
16 MnCr 5
OUTER DIAMETER :
69.98 +/- 0.02
INNER DIAMETER :
57.34+/- 0.02 mm
TOTAL LENGTH :
30 +/- 0.2 mm
SURFACE HARDNESS :
55 - 62 HRC
CASE DEEPTH :
0.7 to 1 mm
SURFACE FINISH :
Ra 0.8 MICRO MM

RAW MATERIAL :
16 MnCr 5
OUTER DIAMETER :
57.13 +/- 0.02
INNER DIAMETER :
44.57+/- 0.02 mm
TOTAL LENGTH :
94+/- 0.2 mm
SURFACE HARDNESS :
55 - 62 HRC
CASE DEEPTH :
0.7 to 1 mm
SURFACE FINISH :
Ra 0.8 MICRO MM
RAW MATERIAL :
16 MnCr 5
OUTER DIAMETER :
57.13 +/- 0.02
INNER DIAMETER :
44.68+/- 0.02 mm
TOTAL LENGTH :
29+/- 0.1 mm
SURFACE HARDNESS :
55 - 62 HRC
CASE DEEPTH :
0.8 to 1.5 mm
SURFACE FINISH :
Ra 0.8 MICRO MM
